With our latest acquisition of a OEM supplier to the Garden Equipment Industry, it has enabled Catton Control Cables to even further compliment it's range of cables in this market area.
|
Typical Characteristics
Full range of cable strokes up to 45mm on standard designs.
Operation by push or pull.
Positive locations ensure vibration does not effect throttle settings.
Neat ABS injection moulded protective covers which include a recessed flat area for a throttle settings label.
Customers name can be included on the moldings
CONTACT rich@catton.co.uk
|
A typical 2 - 4 position throttle/clutch cable, with a large 'T' handle and lever arm to ensure effortless and comfortable function for the operator. (Note: Shows control box with one side removed for integral parts.) |
CONTACT rich@catton.co.uk
|

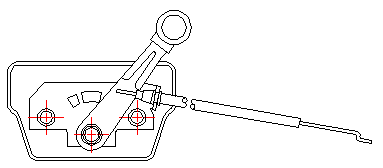

A typical 2 - 4 position throttle/clutch cable, with a smaller length 'T' handle. The lever arm is proportionally smaller also. This is normally used for a lighter application. (Note: Shows control box with one side removed for integral parts.) |
CONTACT rich@catton.co.uk
|

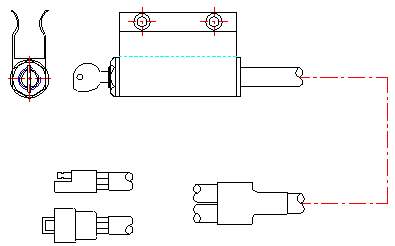

An Electrical Starter Housing. Can be supplied with wiring loom, ignition and key or as a replacement on its own. This is compatible and can be fitted with the above control boxes. |
CONTACT rich@catton.co.uk
|

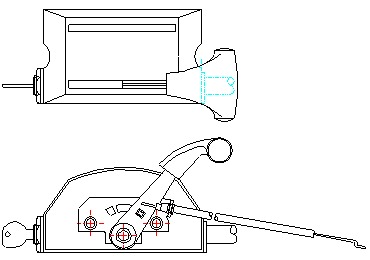

A typical dual action 2 - 4 position throttle/clutch cable, with a large and a small 'T' handle and their appropriate lever arms. This control box can be fitted with the an ignition switch, key and loom as an optional if required. (Note: Shows control box with one side removed for integral parts.) |
CONTACT rich@catton.co.uk
|

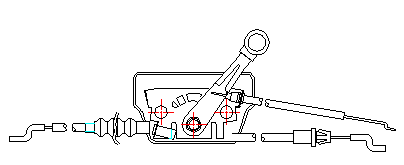

A typical compliance control cable whereby a larger internal plate allows a multi functional operation. Up to 3 cables can be fitted to the same control box. The customer can choice either the " large T handle or smaller version. (Note: Shows control box with one side removed for integral parts.) |
|
A typical brake or clutch cable. These can be designed to the customers requirements. We stock over 3000 different part numbers, to ensure our customers can have exactly the design they require. |
|
A typical brake or clutch cable, utilizing our standard bayonet fitting. These can be designed to the customers requirements. We stock over 3000 different part numbers, to ensure our customers can have exactly the design they require. |
|
A typical brake or clutch cable. The above design shows an extended tube and adjuster, giving up to 38mm of adjustment. These can be designed to the customers requirements. We stock over 3000 different part numbers, to ensure our customers can have exactly the design they require. |
|
|
